VIT Vermont Indexable Tooling


Index carbide insert hollow mill Custom tool

Æ1.315 hollow mill
– Custom Tool  -

# 126 – Tool Design


Index carbide insert hollow mill custom tool

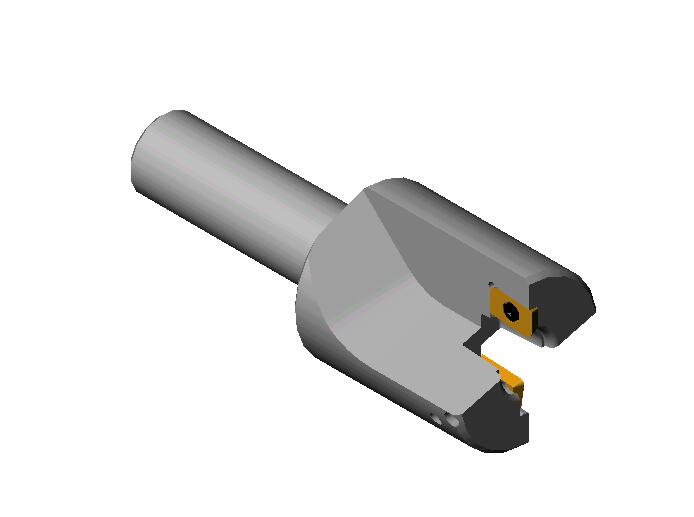

3° hollow mill
– Custom Tool  -

# 127 – Tool Design


Index carbide insert hollow mill custom tool

Æ16.45mm rough hollow mill
– Custom Tool  -

# 128 – Tool Design


Index carbide insert hollow mill custom tool

Æ 2.375 hollow mill
– Custom Tool  -

# 129 – Tool Design


index carbide insert hollow mill bore chamfer tool custom

Hollow mill /
bore & chamfer tool
2 pc. construction
– Custom Tool  -

# 130 – Tool Design
VIT Vermont Indexable Tooling


index carbide insert forming hollow mill custom tool

Forming hollow mill
– Custom Tool  -

# 131 – Tool Design


index carbide insert hollow mill custom tool

Hollow mill (rough)
– Custom Tool  -

# 132 – Tool Design


index carbide insert ID chamfer tool custom

30° I.D. chamfer tool
– Custom Tool  -

# 133 – Tool Design


index carbide insert ID OD chamfer face tool HSK shank

I.D. & O.D. chamfer /
face tool.  HSK 50A shank
– Custom Tool  -

# 134 – Tool Design


index carbide insert ID OD face tool HSK shank custom

I.D. & O.D. and face tool
HSK 50A shank
– Custom Tool  -

# 135 – Tool Design
VIT Vermont Indexable Tooling


index carbide insert ID OD chamfer face bore tool shell mill mount

I.D. – O.D. chamfer / facing / boring tool
Shell mill mount
– Custom Tool  -

# 136 – Tool Design


index carbide insert ID OD chamfer face turn tool custom

I. D. – O.D. chamfer /
face / turn tool
– 2 VIT custom cartridges
– Custom Tool  -

# 137 – Tool Design


index carbide insert custom tool

Key-shaping tool
(unique application)
Mounts on a boring bar
– Custom Tool  -

# 138 – Tool Design


index carbide insert lathe tool square shank custom

23° lathe tool
Square shank
Custom Tool  -

# 139 – Tool Design


index carbide insert lathe tool holder

Lathe tool holder – left hand
Pictured with a square shank and custom insert
– Custom Tool  -

# 140 – Tool Design
VIT Vermont Indexable Tooling


index carbide insert custom lathe tool

Lathe tool
– Custom Tool  -

# 141 – Tool Design


index carbide insert lathe tool

Left hand lathe tool
– Custom Tool  -

# 142 – Tool Design


index carbide insert bore chamfer face tool lathe custom

Bore / chamfer /
facing lathe tool
– Custom Tool  -

# 143 – Tool Design


index carbide insert back profiling lathe tool

Back profiling lathe tool
– Custom Tool  -

# 144 – Tool Design


index carbide insert mill cutter

30° milling cutter
– Custom Tool  -

# 145 – Tool Design
VIT Vermont Indexable Tooling


index carbide insert milling cutter custom

70° milling cutter
– Custom Tool  -

# 146 – Tool Design


index carbide insert round milling cutter

Indexable ½-round
milling cutter
– Custom Tool  -

# 147 – Tool Design


index carbide insert ID OD chamfer tool custom

O.D. – I. D. chamfer tool
– Custom Tool  -

# 148 – Tool Design


index carbide insert bore OD ID chamfer tool CAT40 shank

Bore / O.D. – I.D. /
chamfer tool
CAT 40 shank
– Custom Tool  -

# 149 – Tool Design


indexable carbide insert OD chamfer tool custom

O. D. chamfer tool
– Custom Tool  -

# 150 – Tool Design
