82 deg Spott Indexable Carbide Centering Drill Vermont Indexable Tooling

82 Deg Spot Tool

82º Spott!

82° Indexable Carbide Centering Drill

- Patent # 6,220,795 -

Vermont Indexable Tooling has an indexable carbide insert centering drill to produce your 82 deg include angle spots. This simple and strong centering drill works great on a multitude of materials and can be used for much more than just spotting your drills.

Tool Specifications:

V8122 - 1/4" IC insert

Included angle - 82º
Shank - Ø.375
Overall length - 2.25”
Max Spot Diameter - Ø.49
Coolant Style

Suggested Starting Points
Low Carbon and Mild Steels under 180 BHN	SFM 400-1200	IPR – .001
High Carbon and Alloy Steels under 30Rc and 400 Series Stainless	SFM 250-700	IPR – .001
High Carbon and Alloy Steels between 30 and 40Rc	SFM 200-500	IPR – .001
300 Series; Stainless Steels pH Stainless Steels	SFM 250-600	IPR – .001

Types of machines that it can be used on:
(but not limited to):

Lathe – Manual or CNC
Mill – Manual or CNC
New Machines
Old Machines
And Many More

They are not just for centering:

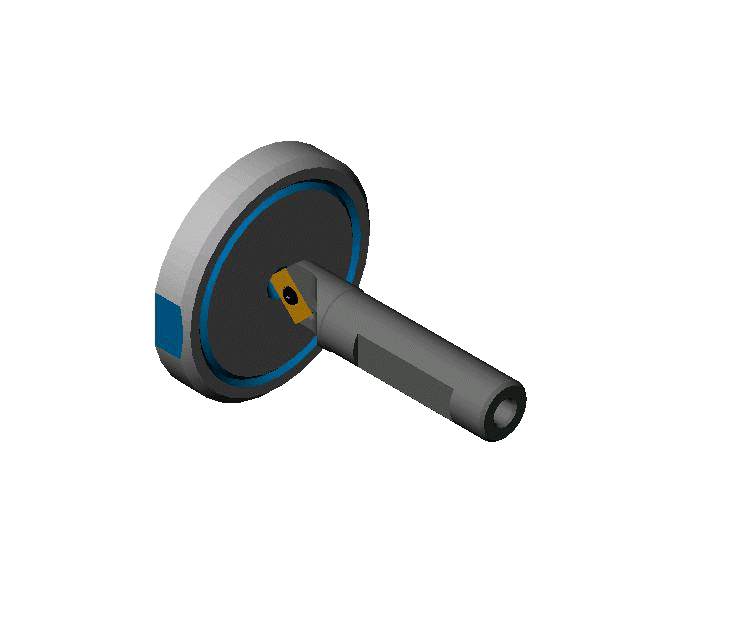

Center Drill Tool 82 Deg Center Drill Tool Facing
Centering Facing

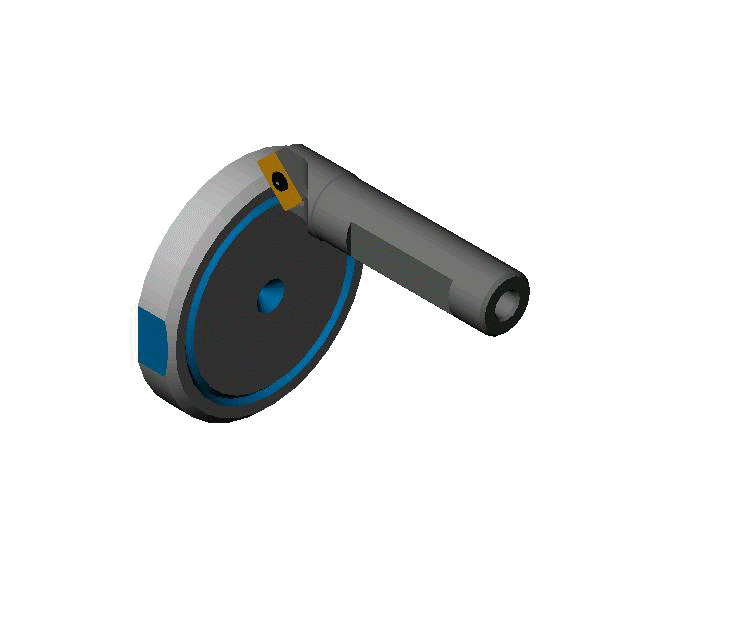

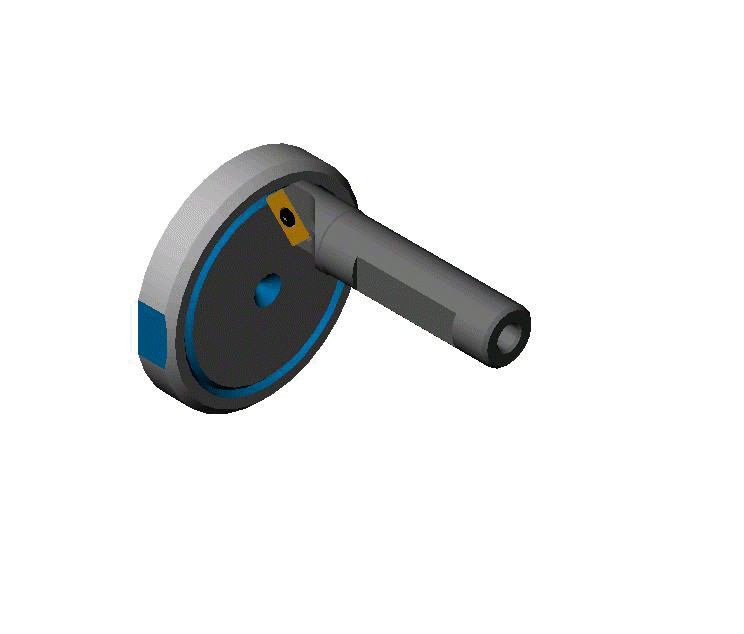

Center Drill Tool 82 deg Grooving Center Drill Tool 82 deg OD Chamfer
Grooving OD Chamfer

Plunge, Edge Break and more

VIT designs and manufactures a wide variety of custom indexable carbide insert tooling!

United States of America and PROUD of it!
